5.6.2 - How do I add Ping-only devices from a file in Statseeker?

1. Create a CSV file with the following headings; IP Address, Device Name, and Ping-only and enter the appropriate data (Ping-only is always "true").

e.g.

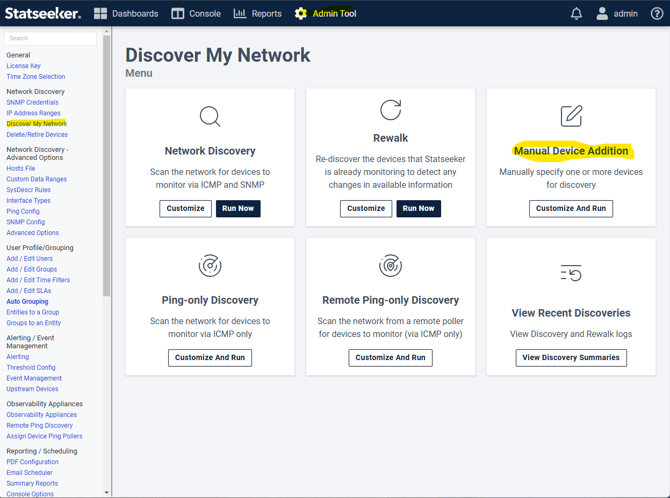

Then go to Admin Tool GUI > Discover My Network > Manual Device Addition.

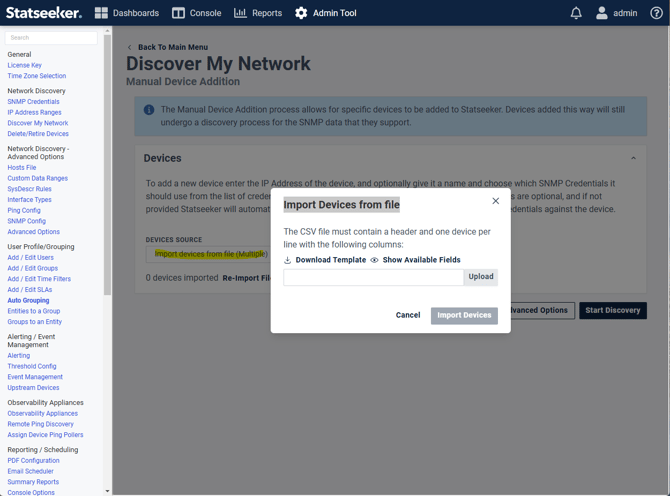

Then click Manual Device Addition and select "Import Devices from file (Multiple)" in the "Devices Source" drop down box.

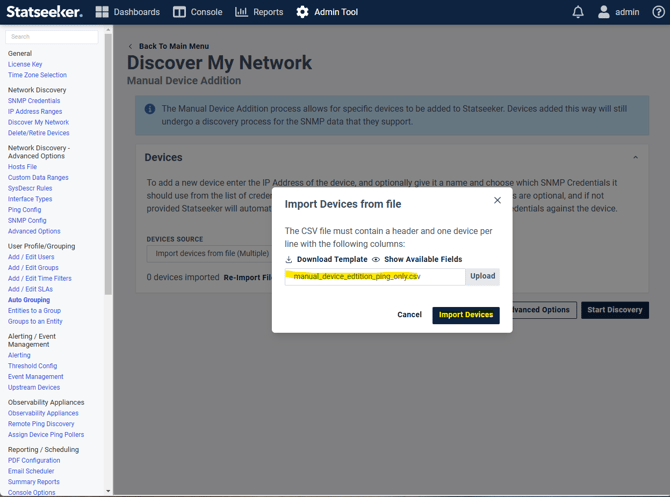

Then click the "Upload" button and select your ping-only CSV file.

Then click the "Import Devices" button.

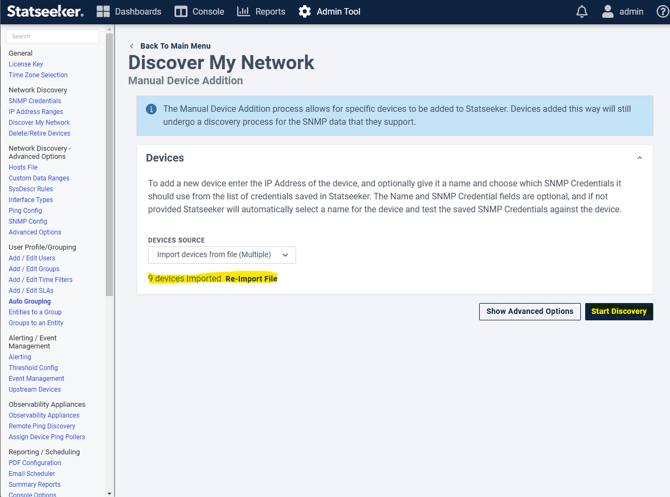

The number of devices that are going to be added should appear on the "base" page, then on this page click "Start Discovery"

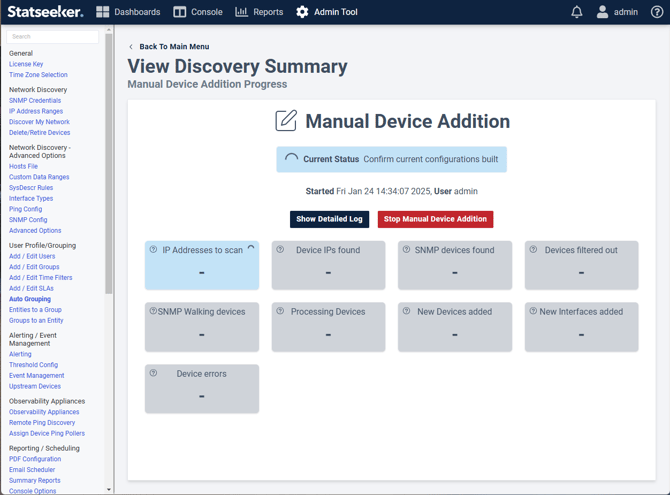

The page below then should appear showing the discovery in progress:

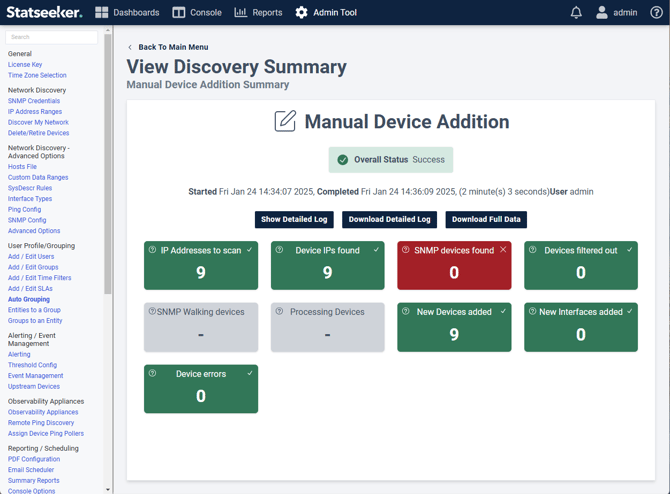

When the discovery is finished a screen like below should appear noting the number of devices added and any errors.

The device addition details can be checked by clicking the "Show Detailed Log" button, this should contain entries like below:

Selecting SNMP Version and Community/Credentials - Fri Jan 24 14:34:59 2025
No SNMP devices found

Building Rewalk List - Fri Jan 24 14:34:59 2025
No devices to rewalk
Assigned 10.100.59.254 Entity number 211376
Assigned 10.100.59.4 Entity number 211377
Assigned 10.100.59.3 Entity number 211378
Assigned 10.100.59.253 Entity number 211379
Assigned 10.100.59.11 Entity number 211380
Assigned 10.100.59.12 Entity number 211381
Assigned 10.100.59.250 Entity number 211382
Assigned 10.100.59.252 Entity number 211383
Assigned 10.100.59.251 Entity number 211384

NIM Discovery Errors Summary - Fri Jan 24 14:36:09 2025
No discovery errors found.

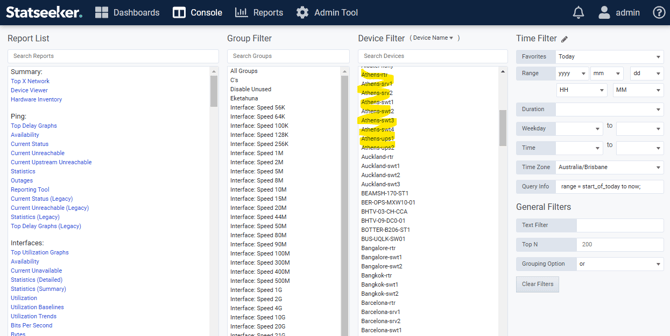

The devices should now be listed in "Device Filter" column the Console GUI

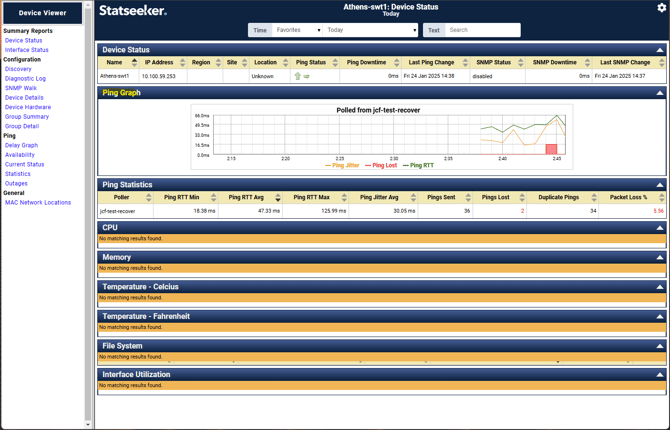

After a few minutes the devices can be checked using the "Device Viewer" and they should show "ping" data on the "Ping Graph".

Please note the "Ping Graph" can be "zoomed" by clicking and dragging the area you wish to "zoom in" to.
